ICM CONTROLS ICM Defrost Control ICM322

(0)No Reviews yet
Part #: ICM322

Ships within 48hrs!

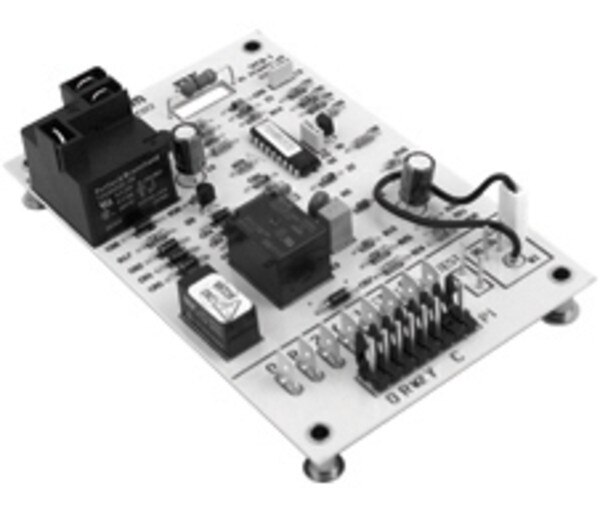

ICM Controls ICM322 Defrost Control Board Replacement for OEM Carrier. Low cost, time and temperature defrost. Time and temperature terminate. Test pins reduce test time by 256X. High power output, outdoor fan (1/2 HP fan @ 240 VAC). Strip heat, reversing valve outputs (24 VAC, 1 amp). This control board replaces OEM models including Carrier CES0130024-00 control boards.

Voltage: 18-30 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output: N.O.: 20 amps - N.C.: 10 amps
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/50/90 min
Height: 1.32"
Width: 3.5"
Length: 5.5"
