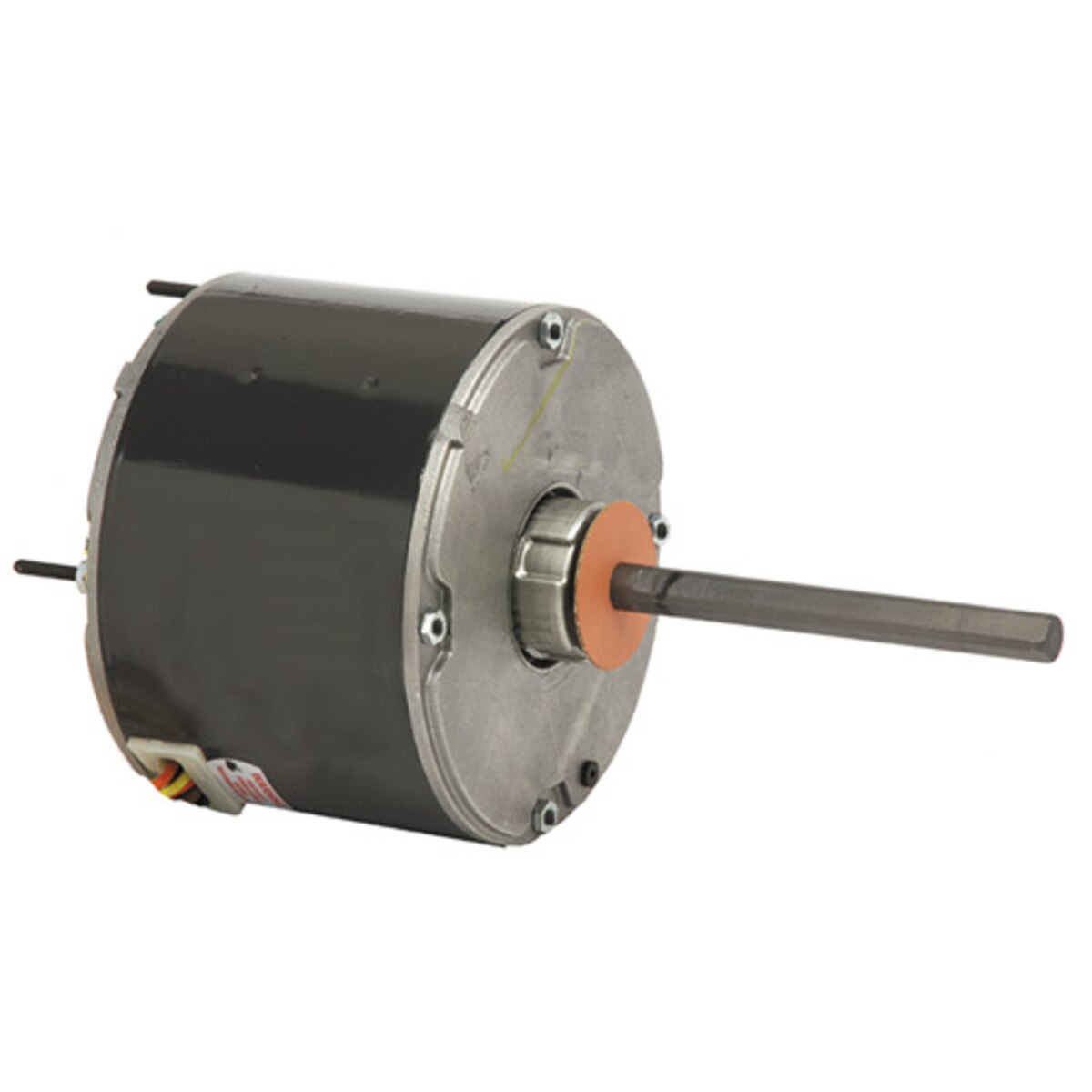

US MOTORS CONDENSER FAN MOTOR 1/6HP 1075RPM 1859
Product Specification
| Specification | Value |
|---|---|
| Part Number | 1859 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Application | Condenser Fan Motor |
| Horsepower | 1/6 HP |
| Voltage | 208-230V |
| Speed | 1075 RPM |
| Enclosure | Totally Enclosed (TEAO) |
| Duty | Continuous, Air Over |
Description
The 1859 is a 1/6 HP 208-230V permanent split capacitor condenser fan motor for residential and commercial HVAC condensing units. Operating at 1075 RPM, it drives the condenser fan blade that pulls air across the coil fins to reject heat from the refrigerant circuit and keep the system running efficiently. A failed condenser fan motor causes the outdoor unit to trip on high-pressure lockout - replacing it with the 1859 restores normal operation and protects the compressor from heat damage.
