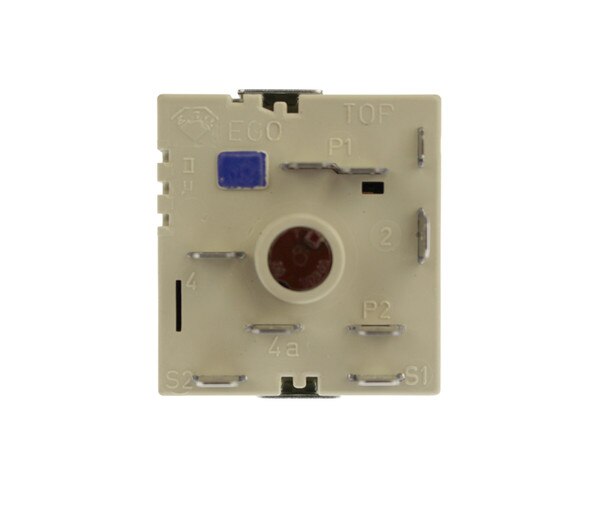

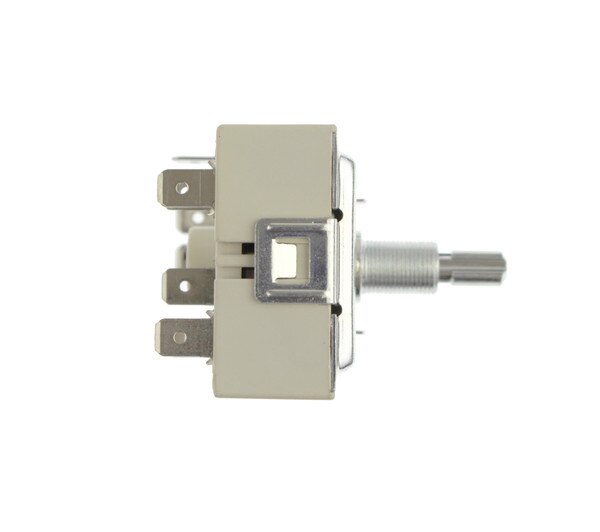

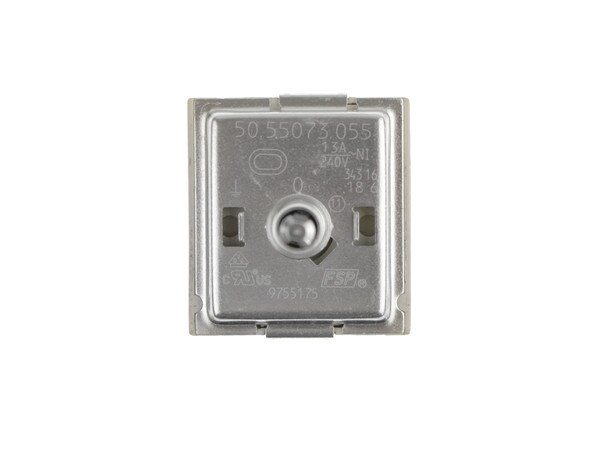

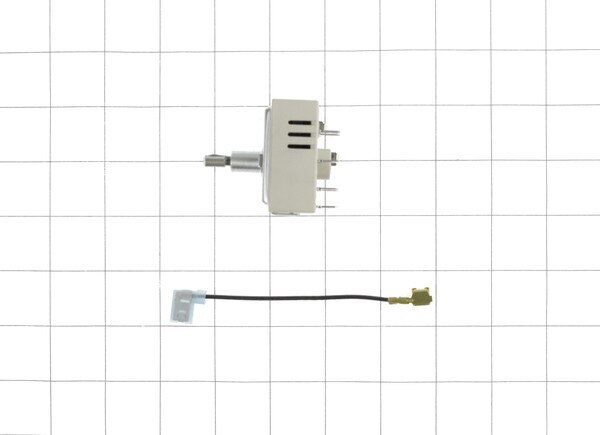

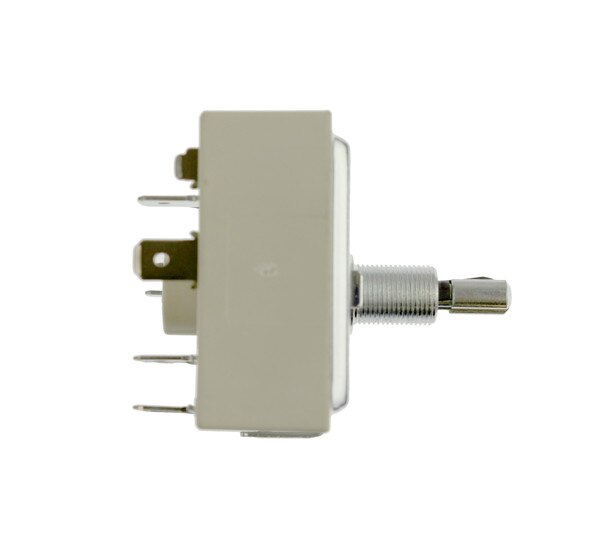

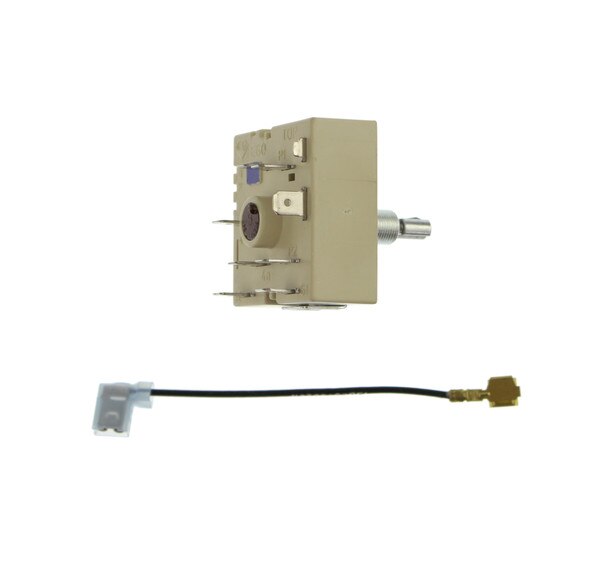

WHIRLPOOL CORP SWITCH-INF 8203536
Description
Whirlpool Genuine OEM 8203536 Range Surface Element Switch. This switch is for a dual element. This switch controls an element with 1000 - 2400 watts. The surface element switch regulates the heat of the surface burner.
This part works with the following brands: Whirlpool, Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, & IKEA.
Possible Repair Solution For:
Surface element will not heat, will not start, will not turn on.
Please Note: This is intended as a guideline only, as other items can cause the same symptoms.
This part is also known as an infinite switch, burner control switch.
The appliance this part fits is also referred to as a stove, oven, cooktop, wall oven, or range oven.
This part works with the following brands: Whirlpool, Roper, Admiral, Maytag, Hardwick, Jenn-Air, Estate, Magic Chef, Crosley, Inglis, Norge, Modern Maid, Amana, Kenmore, KitchenAid, Caloric, & IKEA.
Possible Repair Solution For:
Surface element will not heat, will not start, will not turn on.
Please Note: This is intended as a guideline only, as other items can cause the same symptoms.
This part is also known as an infinite switch, burner control switch.
The appliance this part fits is also referred to as a stove, oven, cooktop, wall oven, or range oven.
Schematic
Compatible Brands
Whirlpool, Kenmore, Maytag, Jenn Air, KitchenAid, Amana, Magic Chef, Montgomery Wards, Roper, Crosley, Admiral, Hoover, Estate, Norge, Inglis
