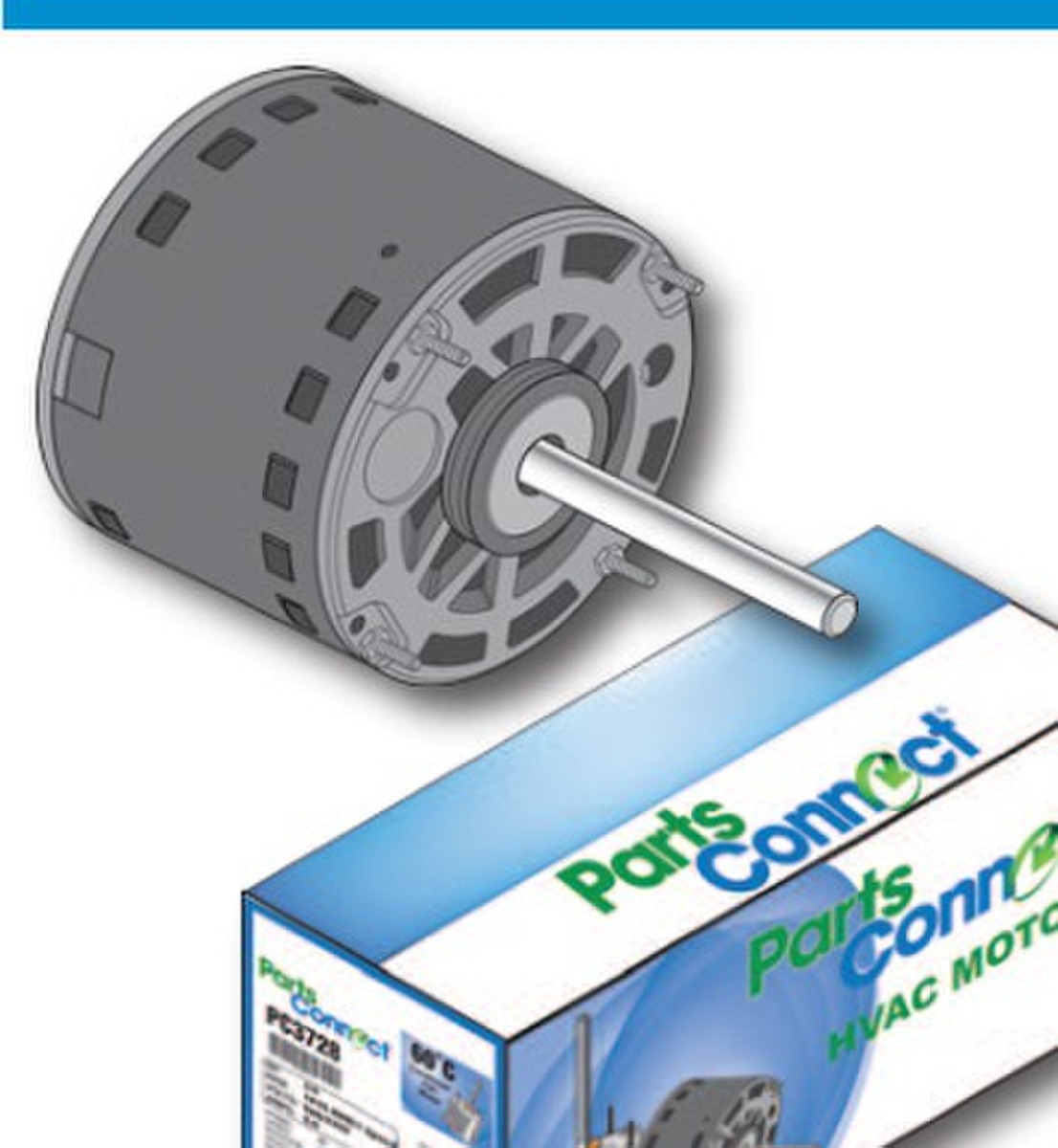

Parts Connect 3/4HP 3SP 115V BLOWER PC3589
Product Specification
| Specification | Value |
|---|---|
| Part Number | PC3589 |
| Motor Type | PSC (Permanent Split Capacitor) |
| Drive Type | Direct Drive |
| Horsepower | 3/4 HP |
| Voltage | 115V |
| Speed | 1075 RPM |
| Frame | 48 Frame |
| Application | HVAC Fan and Blower |
| Duty | Continuous |
Description
The PC3589 is a 3/4 HP 115V permanent split capacitor direct-drive fan and blower motor for HVAC air handlers, furnaces, and fan coil units. Rated for continuous duty at 1075 RPM, it drives the blower wheel that circulates conditioned air through the duct system during both heating and cooling cycles. Swapping a failed direct-drive blower motor with the PC3589 corrects no-airflow conditions and restores proper system performance without requiring duct or housing modifications.
