FIELD PIECE FIELDPIECE COMPACT METER WITH TRUE RMS SC260
Product Specification
Product Documentation
- Display: 4000 count
- Backlight: 5 minute duration with auto-off. Blue color. SC260 only
- Overrange: (OL) or (-OL) is displayed
- Measurement rate: 3 times per second, nominal
- Zero: Automatic
- Operating environment: 32°F to 122°F (0°C to 50°C) at <70% relative humidity
- Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
- Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
- Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C(82°F to 122°F)]
- APO (Auto Power Off): Approx. 30 minutes
- Power: 9V, NEDA 1604A, IEC 6LR61 9V alkaline battery
- Battery life: 200 hours typical alkaline (SC220/SC240); 150 hours typical alkaline (SC260)
- Low battery indication: Battery icon blinks and “LO.bt” is displayed when the battery voltage drops below the operating level
- Dimensions: 205.5mm(H) x 67.4mm(W) 45.1mm(D)
- Weight: Approx. 265g including battery
- Altitude: Up to 6562 ft (2000m)
- Overload protection: 600 VDC or 600VAC rms unless otherwise stated
- Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above
- Included test leads are gold- plated and have removeable safety caps
Description

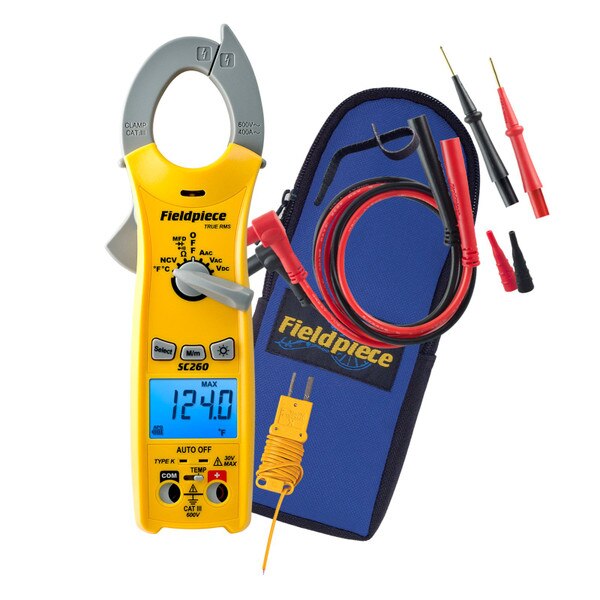

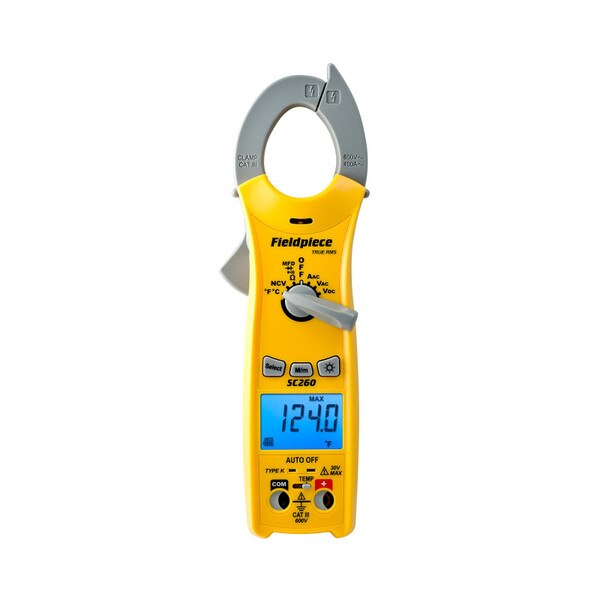

The Fieldpiece SC260 True RMS Compact Clamp Meter delivers professional HVACR electrical testing capability in an ergonomic, compact design. True RMS measurements ensure accuracy when testing variable frequency drives (VFDs) a common and critical need on modern HVAC equipment. The SC260 includes temperature measurement in both Fahrenheit and Celsius, a backlit display for poor-lighting conditions, and a sturdy swivel magnet for hands-free use. Auto Select mode automatically identifies and selects the correct measurement just set the dial and connect your leads. High-temperature resistance means accurate readings from sub-zero freezer work to rooftop summer calls.
