ICM CONTROLS ICM DEFROST CONTROL ICM321

(0) No Reviews yet
Part #: ICM321
Brand: ICM CONTROLS
$84.10

Ships within 48hrs!

Description

Description

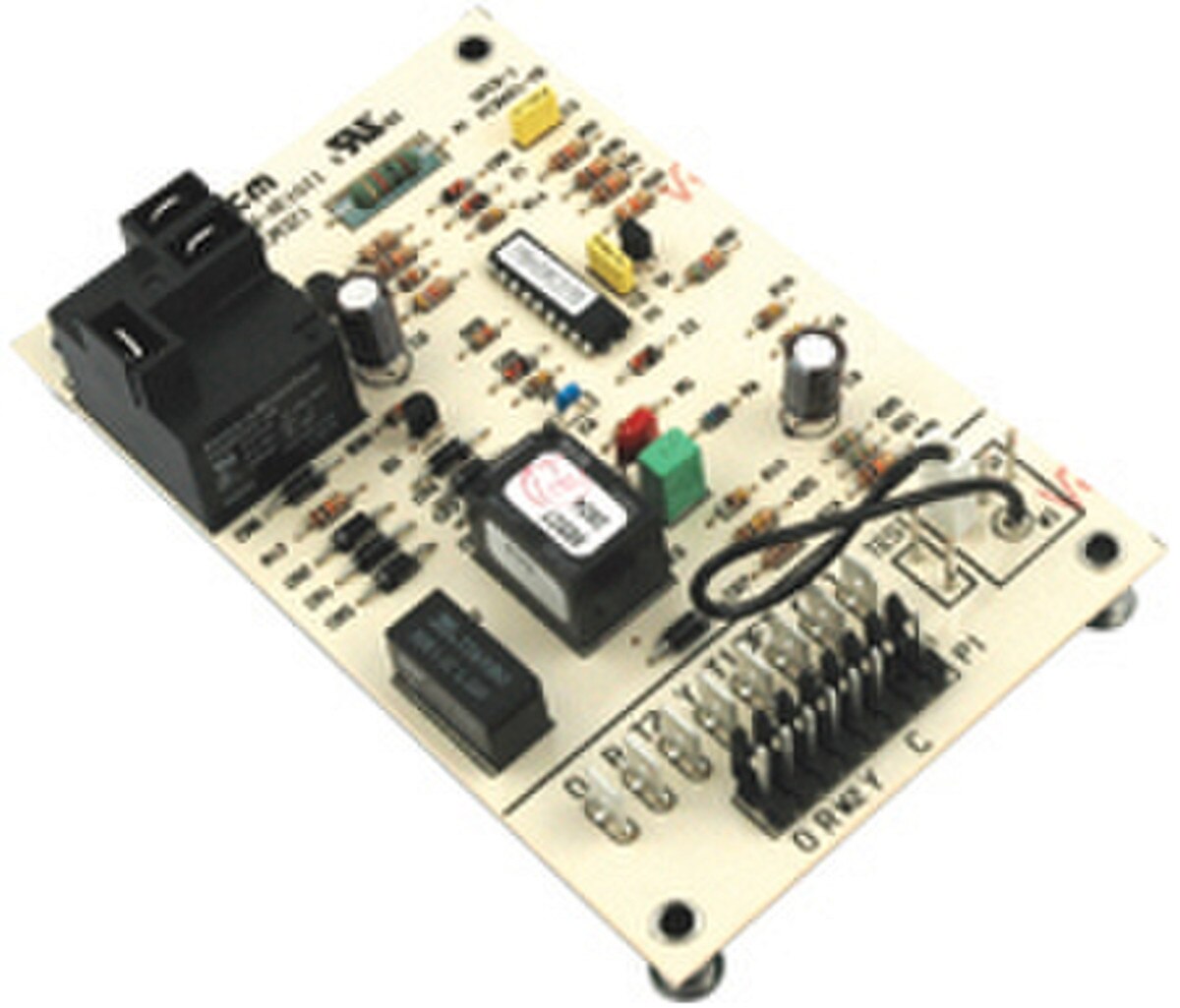

ICM Controls ICM321 Defrost Control Board Replacement for OEM Carrier. Low cost, time and temperature defrost. Time and temperature terminate. Test pins reduce test time by 256X. High power output, outdoor fan (1/2 HP fan @ 240 VAC). Strip heat, reversing valve outputs (24 VAC, 1 amp). Integral short cycle protection. This control board replaces OEM models including Carrier CES01130063-00, CES01130063-01, CES01130063-02, CES01130063-02A, CES0130024-01, 150-83-6A control boards.

Voltage: 18-30 VAC
Frequency: 50/60 Hz
Outdoor Fan Relay Output: N.O.: 20 amps - N.C.: 10 amps
Form: SPDT
Anti-Short Cycle Time: 5 minutes
Defrost Time: Fixed 10 minutes
Interval Time Between Defrosts: Pin-selectable 30/50/90 min
Height: 1.32"
Width: 3.5"
Length: 5.5"
