ICM CONTROLS ICM Furnace Control ICM280
Description
Description

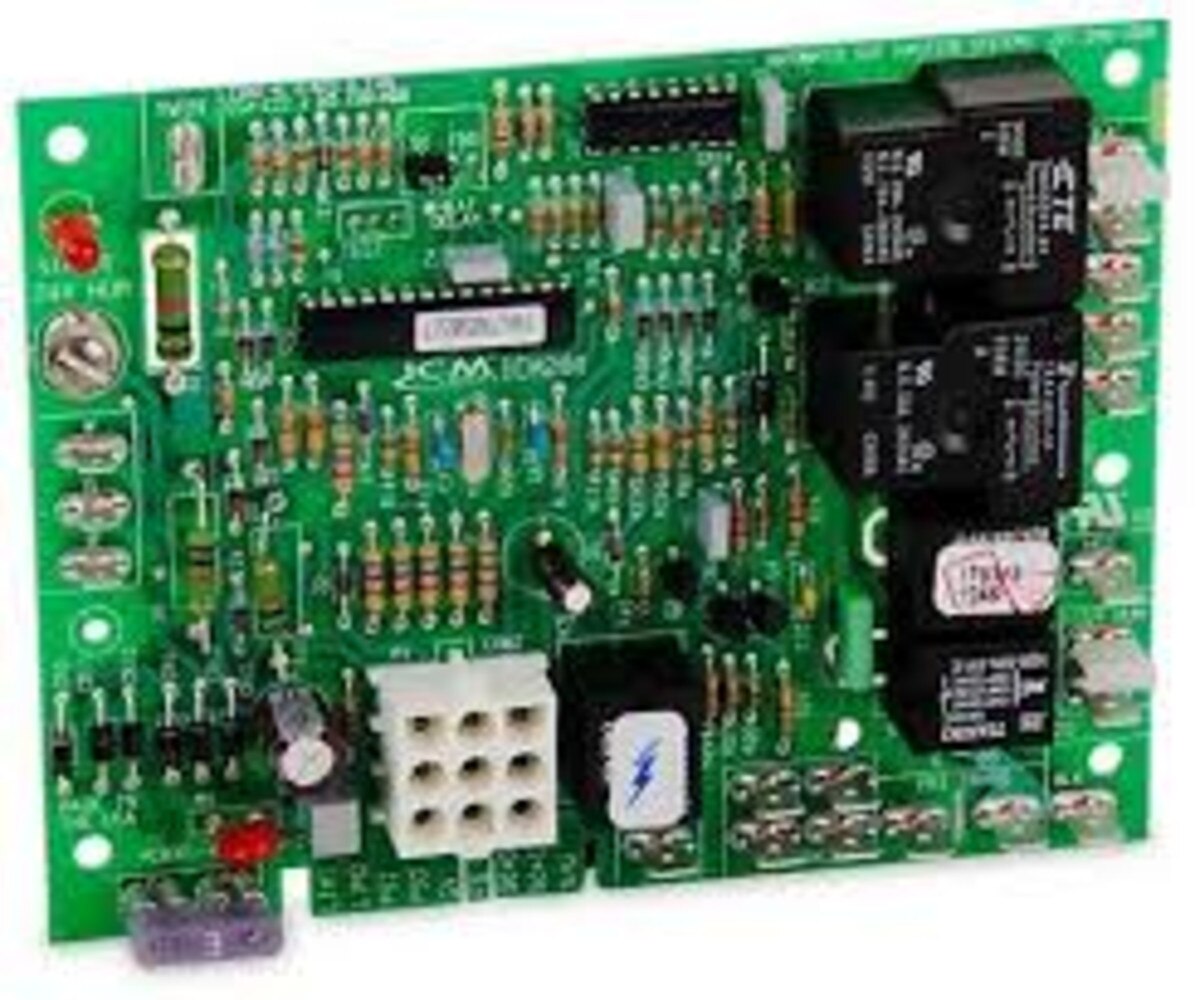

ICM Controls ICM280 Furnace Control Board Replacement for OEM Goodman. Low cost form, fit and functional replacement board for Goodman, Janitrol, TI, White-Rodgers and UTEC. Microprocessor based design for precise timing. Functions with all 24 VAC thermostats. Diagnostic fault codes (blinking LED) for simple troubleshooting. Twining compatible with another ICM280. For 80+ and 90+ applications. 9-pin card slot connection and 9-pin Molex connector on board. UL recognized. This control board replaces OEM models including Goodman B18099-06, B18099-08, B18099-10, B18099-13, B18099-13S, UTEC 1012-933D, Texas Instruments 41F-5, and White-Rodgers 50T35-730, 50T35-743 control boards.
Line Voltage Range: 98 to 132 VAC @ 60Hz
Ignitor: 5A @ 120 VAC
Fan: 2 HP @ 240 VAC
Inducer Motor: 7A @ 250 VAC
Gas Valve: 1A @ 24 VAC
Height: 1"
Width: 5.75"
Length: 4.75"
