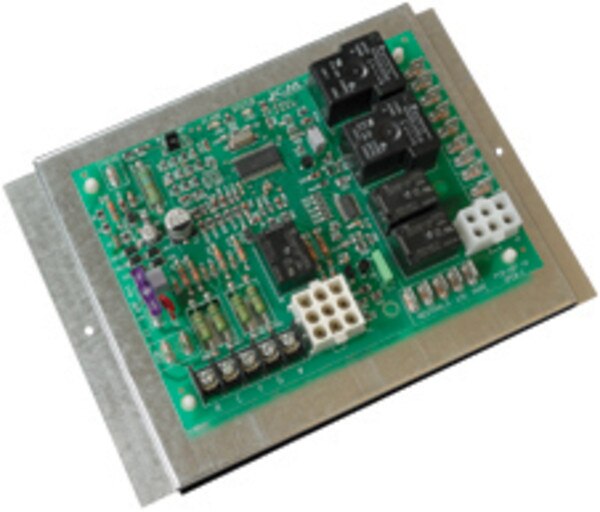

ICM CONTROLS ICM Furnace Control ICM2805A

ICM Controls ICM2805A Furnace Control Board Replacement for OEM Goodman. Low cost form, fit and functional OEM replacement control board for Nordyne: 624631. For use with G3, G4, G5, G6, M2 and M3 furnace modules. Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor. Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout and limit switches. Microprocessor-based precision. Twinning compatible with another ICM2805A furnace control. Diagnostic LEDs aid in testing and troubleshooting. This control board replaces OEM models including Nordyne 624631 control boards.

Line Voltage Range: 120/240 VAC @ 60 Hz
Ignitor: 5A, 120 VAC
Cool Blower: 10A, 2HP, 240 VAC
Heat: 5A, 1/2 HP, 250 VAC
Inducer Blower: 4A, 120 VAC
Gas Valve: 1A, 24 VAC
Humidifier Motor: 0.5A, 24 VAC
Electronic Air Cleaner: 1A, 120 VAC
Height: 1.5"
Width: 6"
Length: 4.5"
