ICM CONTROLS ICM Furnace Control ICM281

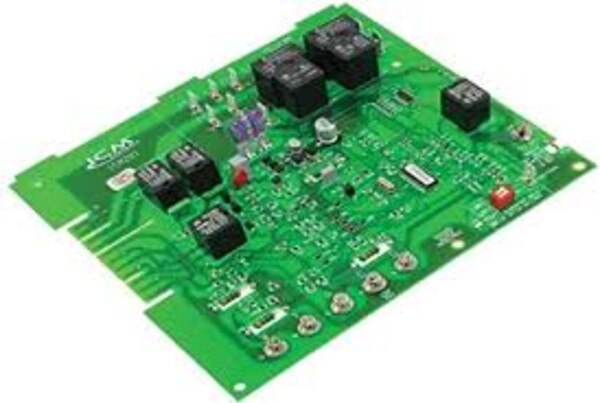

ICM281 ICM Controls Furnace Control Board Replacement for Carrier, Bryant.
Replaces Carrier CES0110057-xx Series Control Boards.
Low cost form, fit and functional replacement board for Carrier CESO11005700/01/02
• Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
• Microprocessor-based for precise timing
• Functions with all 24 VAC thermostats
• Designed for 100% gas shutoff in case of ignition failure
• Twinning compatible with another ICM281 board
• Reverse polarity protection
• Secondary brownout voltage protection
• Diagnostic fault codes (blinking LED) for simple troubleshooting
Weight/Dimensions:
Weight: 0.6
Height: 0.75
Width: 8.5
Length: 7.625
