SUPCO YORK HOT SUFACE IGNITOR SIG102
Description
Description

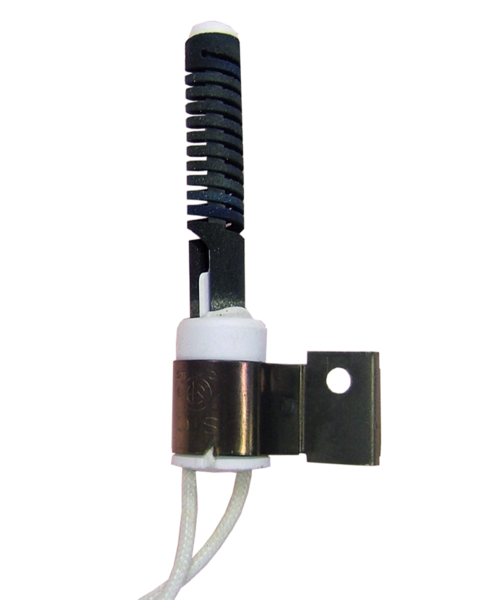

Supco SIG102 Round Hot Surface Ignitor Silicone Carbide.
Exact Replacement Hot Surface Igniters.
Applications Furnaces, Unit Heaters, Water Heaters, Boilers, Pool Heaters, Etc.
• Replaces Exact OEM Hot Surface Igniters
• Highest density silicone carbide - greater physical strength
• Double helix spiral design - requires less current to light
• Easy installation - no modifications or adapters necessary
• Superior gas lighting ability
• Lower power consumption
• Higher resistance to oxidation
• 18 gauge copper high temperature fiberglass insulated lead wires
120VAC.
Time to temperature (1800°F): < 17 seconds @ 120 VAC.
Cold resistance: 40-100 Ohms @ 75°F +/- 10°F.
Amperage: 4 amps @ 132 VAC maximum.
* See Cross Reference Below *
Exact Replacement Hot Surface Igniters.
Applications Furnaces, Unit Heaters, Water Heaters, Boilers, Pool Heaters, Etc.
• Replaces Exact OEM Hot Surface Igniters
• Highest density silicone carbide - greater physical strength
• Double helix spiral design - requires less current to light
• Easy installation - no modifications or adapters necessary
• Superior gas lighting ability
• Lower power consumption
• Higher resistance to oxidation
• 18 gauge copper high temperature fiberglass insulated lead wires
120VAC.
Time to temperature (1800°F): < 17 seconds @ 120 VAC.
Cold resistance: 40-100 Ohms @ 75°F +/- 10°F.
Amperage: 4 amps @ 132 VAC maximum.
* See Cross Reference Below *
