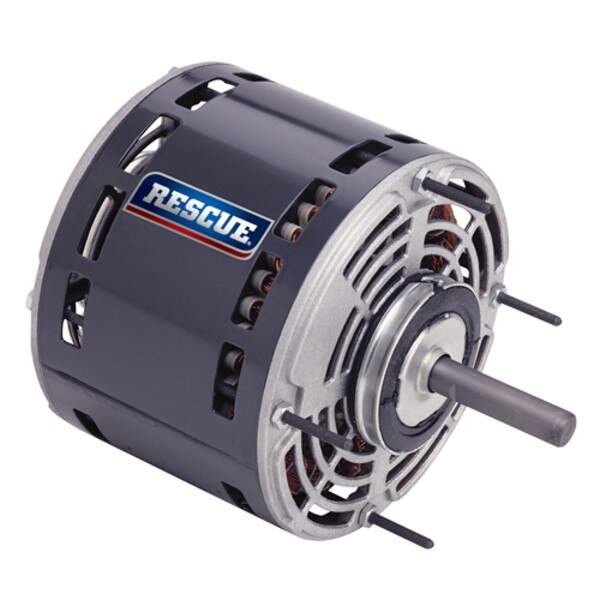

US MOTORS RESCUE MOTOR SPLIT CAPACITOR 5460

US Motors RESCUE Direct Drive Fan & Blower Motor. 5.6" Diameter. 1/2, 1/3, 1/4, 1/5, and 1/6 HP. 4 holes in shell for Rheem mount. For 1/3 to 1/6 HP, if more airflow is needed, a 7.5MFD capacitor may be used. Screws for shell mounting included in carton. Extended mounting studs. Designed for use with 370V capacitors. Class B insulation. 36" leads. High efficiency design. Continuous duty, air over. Reversible rotation. Automatic reset thermal overload protector. 2.5" diameter hub rings included.

Type: Permanent Split Capacitor
HP: 1/2, 1/3, 1/4, 1/5, and 1/6
Volts: 115
RPM: 1075
Speeds: 4
Amps: 7.3
Rotation: CWLE
Shaft Dimensions: 1/2" x 5"
Body Length: 5-3/8
Body Diameter: 5-5/8"
Weight: 15 lbs
