WHITE-RODGERS DIVISION CONTROL BRD 50A55-843
Description
Description

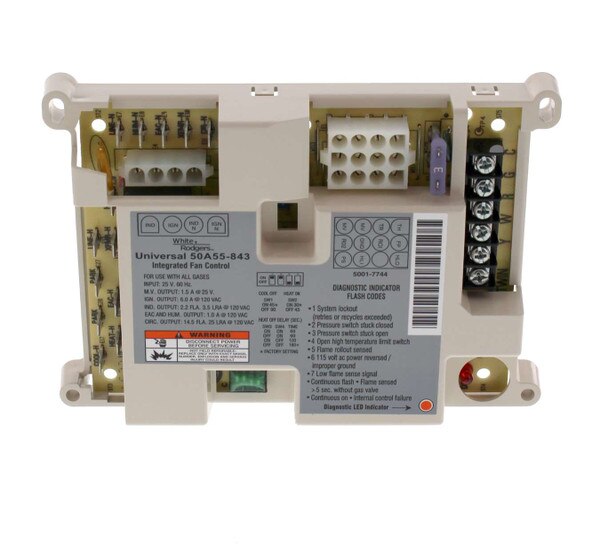

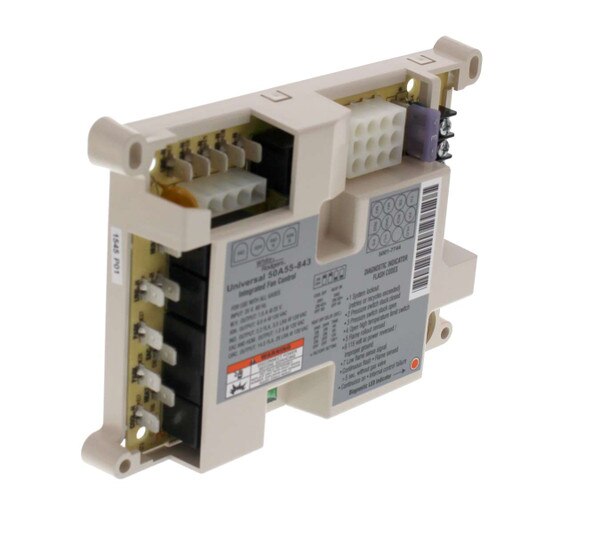

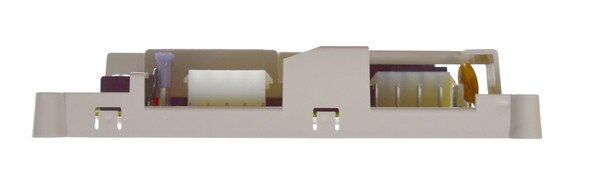

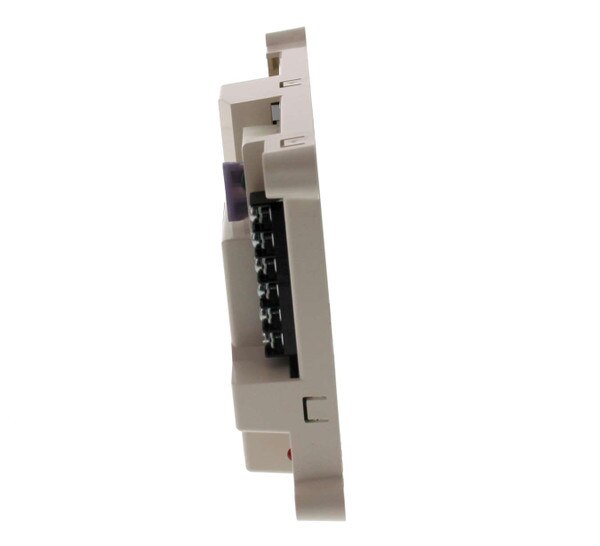

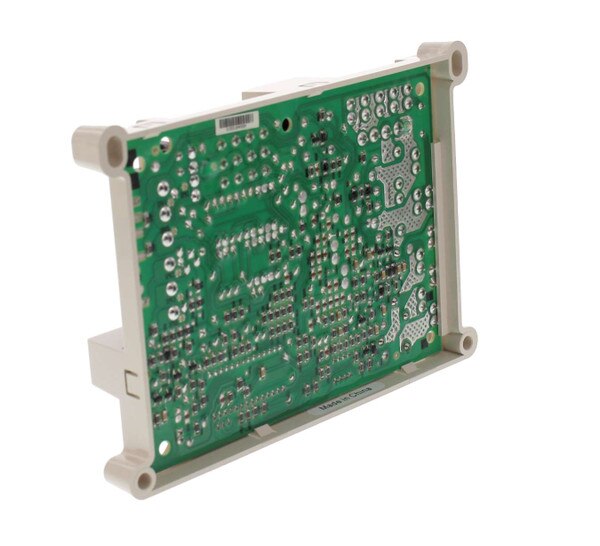

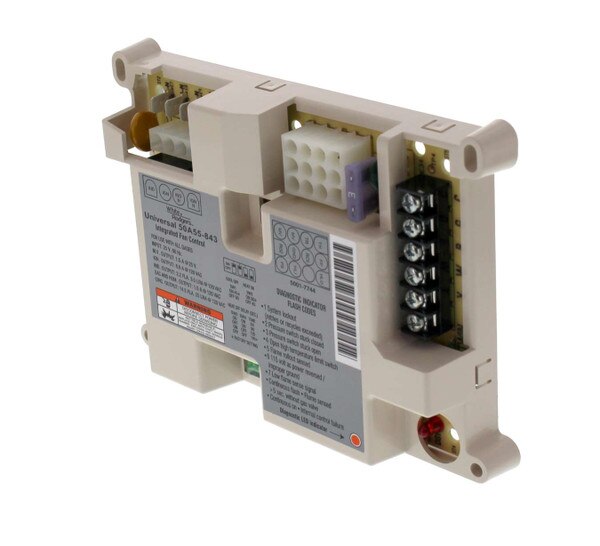

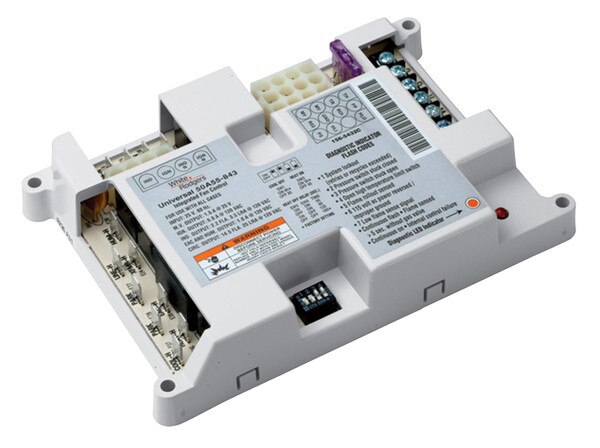

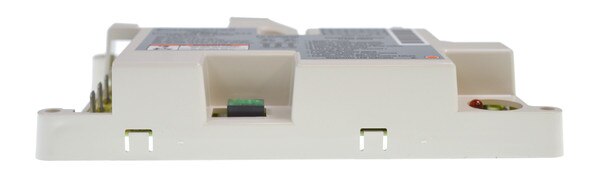

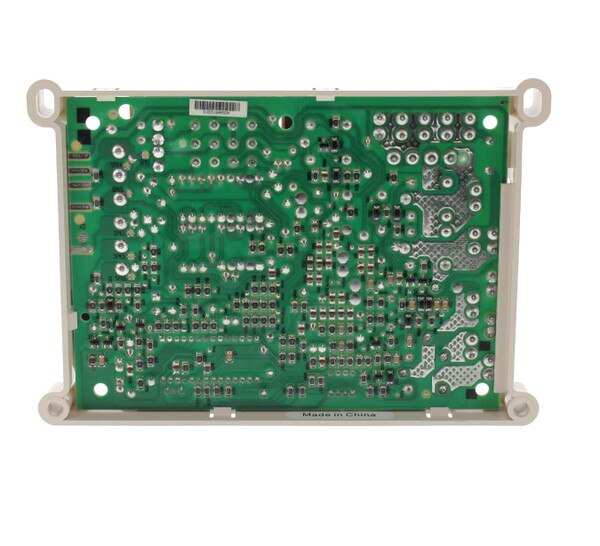

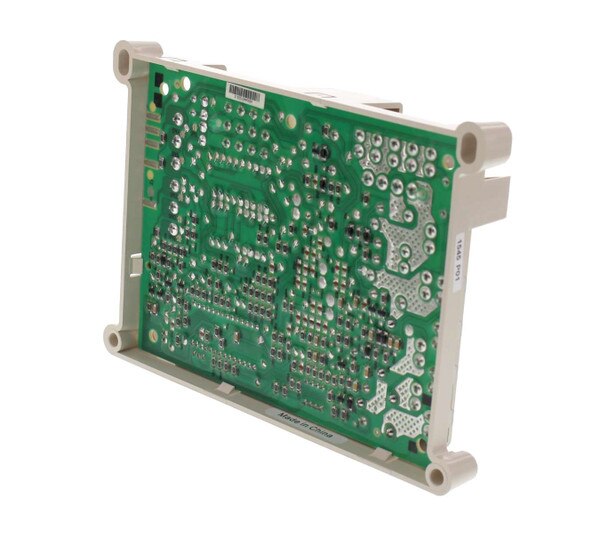

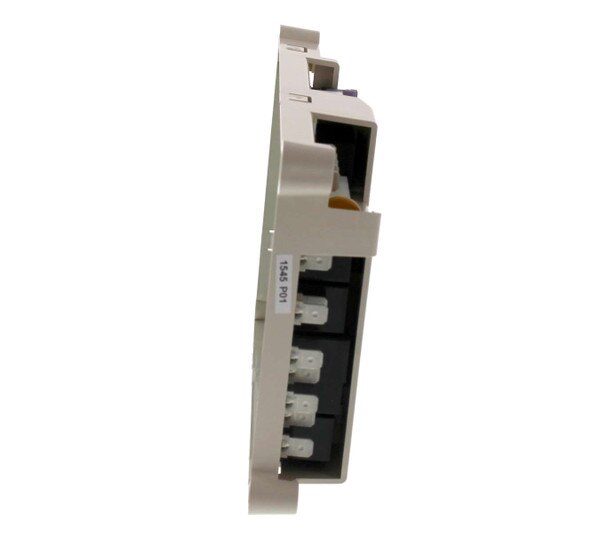

White Rodgers 50A55-843 Universal Replacement Integrated Hot Surface Ignition Module for Silicon Carbide Ignition
Click on the Data Sheet Below to see a complete Cross reference
Electrical Rating at 77°F (25°C):
Input Voltage 25 VAC, 50/60 Hz
Max. Input Current (@ 25 VAC) 0.45 amp
Relay Load Ratings:
Valve Relay 1.5 A @ 25 VAC, 50/60 Hz, 0.6f
Ignitor Relay 6.0 A @ 120 VAC, 50/60 Hz (resistive)
Inducer Relay 2.2 FLA-3.5 FLA @ 120 VAC
Circulator Relay 14.5 FLA-25.0 FLA @ 120 VAC
Operating Temperature: -40° to 175°F (-40° to 80°C)
Humidity Range:
5% to 93%
The 50A55-843 Universal Silicon Carbide Integrated Ignition module employs a microprocessor which continually monitors,
analyzes and controls the proper operation of the gas burner, Inducer and fan. This one module will replace most of the
50A5X-XXX integrated ignition carbide modules that have been manufactured by White-Rodgers for most OEM applications.

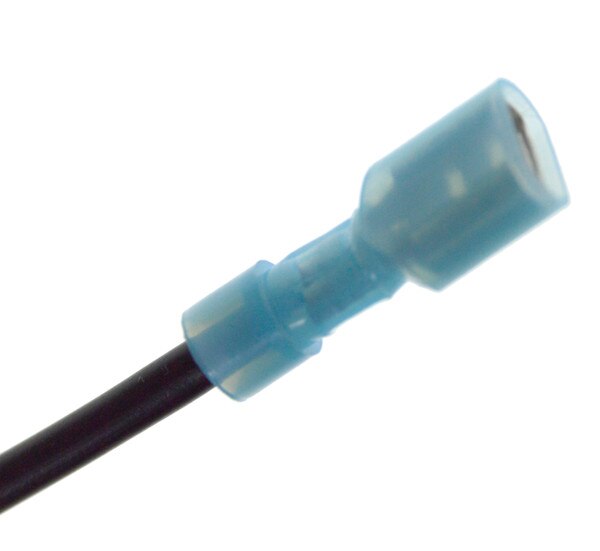

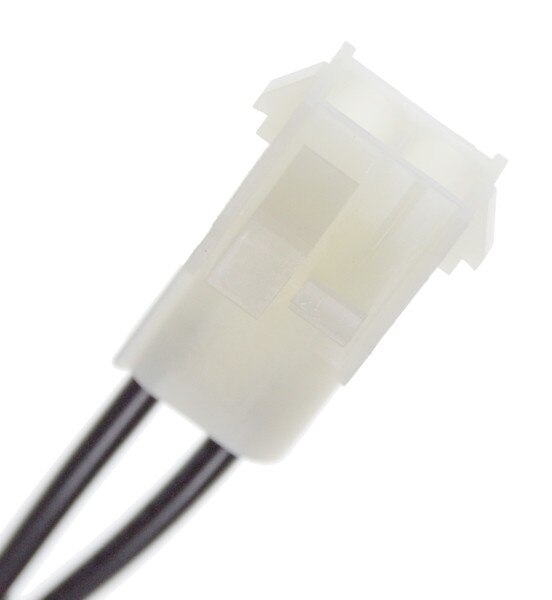

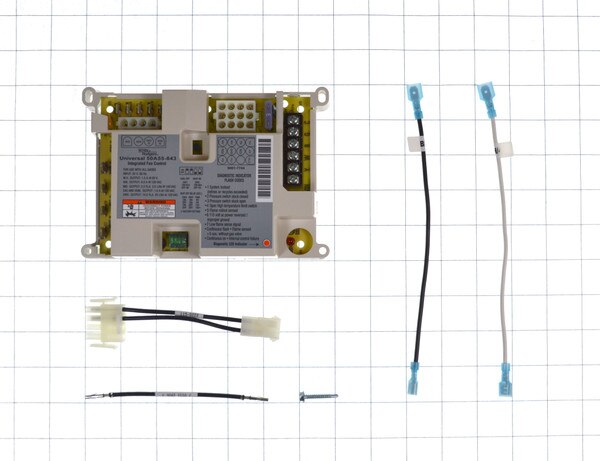

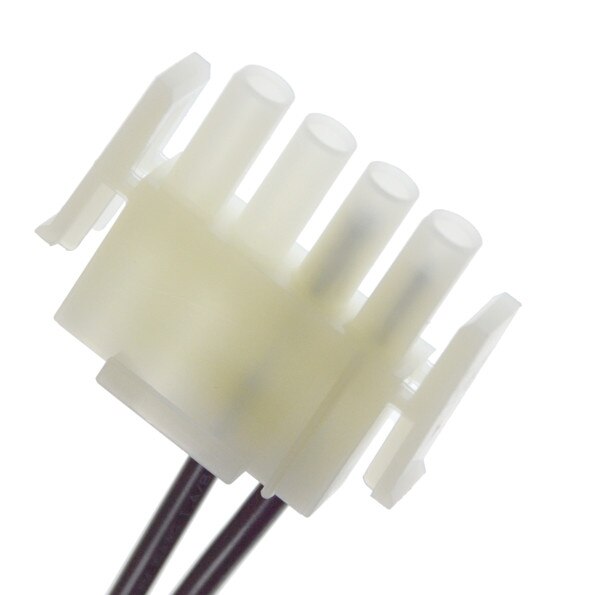

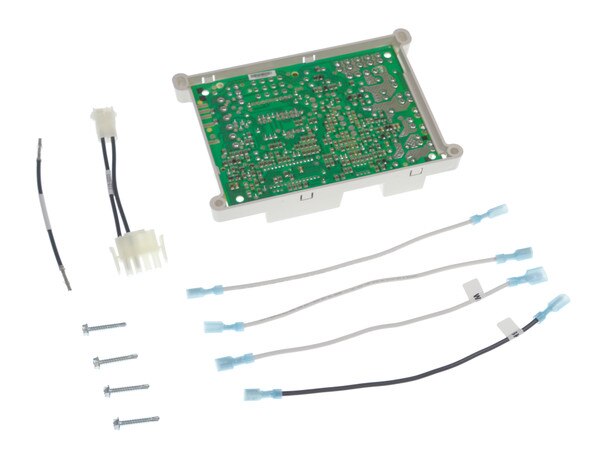

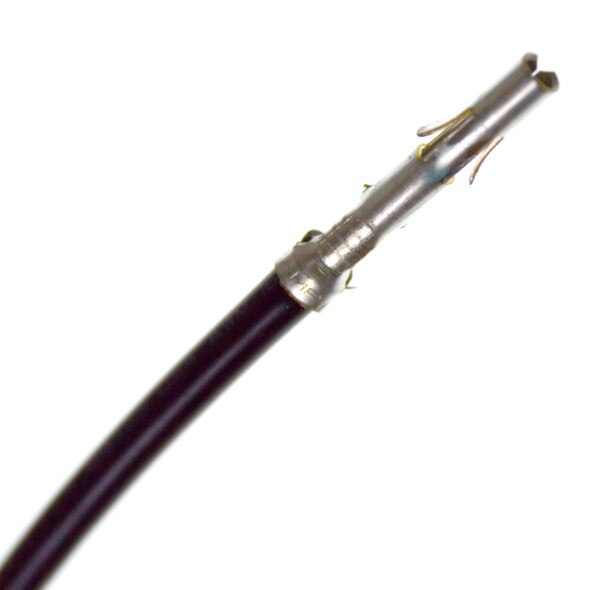

The Universal Module includes an extensive cross-reference, additional jumper wires, additional wiring harness and a jumper for Trane applications. The module also has terminals for powering a humidifier and electronic air cleaner.
Click on the Data Sheet Below to see a complete Cross reference
Electrical Rating at 77°F (25°C):
Input Voltage 25 VAC, 50/60 Hz
Max. Input Current (@ 25 VAC) 0.45 amp
Relay Load Ratings:
Valve Relay 1.5 A @ 25 VAC, 50/60 Hz, 0.6f
Ignitor Relay 6.0 A @ 120 VAC, 50/60 Hz (resistive)
Inducer Relay 2.2 FLA-3.5 FLA @ 120 VAC
Circulator Relay 14.5 FLA-25.0 FLA @ 120 VAC
Operating Temperature: -40° to 175°F (-40° to 80°C)
Humidity Range:
5% to 93%
The 50A55-843 Universal Silicon Carbide Integrated Ignition module employs a microprocessor which continually monitors,
analyzes and controls the proper operation of the gas burner, Inducer and fan. This one module will replace most of the
50A5X-XXX integrated ignition carbide modules that have been manufactured by White-Rodgers for most OEM applications.
The Universal Module includes an extensive cross-reference, additional jumper wires, additional wiring harness and a jumper for Trane applications. The module also has terminals for powering a humidifier and electronic air cleaner.
