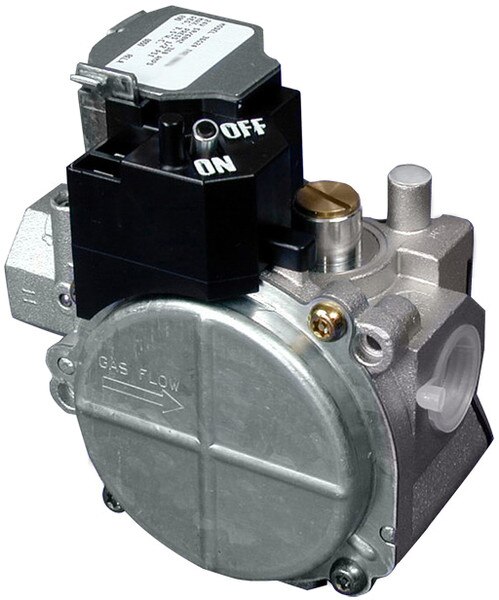

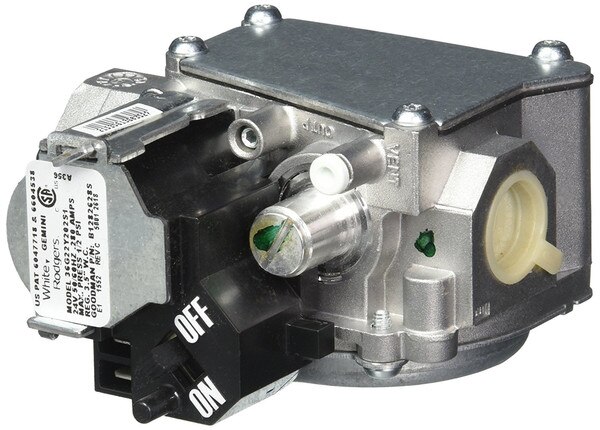

WHITE-RODGERS DIVISION GAS VALVE OEM FOR GOODMAN, SIN 36G22-254
Compatible Models
Specifications:
Type of Gas: Natural Gas, Liquid Propane
Pipe Size: 1/2" x 1/2"
Electrical Rating: 0.3 amps
Opening: Fast
Flow Direction: Straight Thru
Regulator Setting: 3.5"
Voltage: 24 VAC
Operating Ambient Temperature: -40° to 175°F (-40°to 79°C)
Pressure Rating (max.): 1/2 PSI (14.0" W.C.)
Type of Gas: Natural Gas, Liquid Propane
Pipe Size: 1/2" x 1/2"
Electrical Rating: 0.3 amps
Opening: Fast
Flow Direction: Straight Thru
Regulator Setting: 3.5"
Voltage: 24 VAC
Operating Ambient Temperature: -40° to 175°F (-40°to 79°C)
Pressure Rating (max.): 1/2 PSI (14.0" W.C.)
Description
White Rodgers 36G Series Ignition Gas Valve, 1/2", 1 Stage Fast Open. The 36G gas valve is a Combination Gas Control Valve Designed for Use with Non-Piloted Intermittent Ignition Systems. The Control is Designed to Meet Today’s Maximum Capacity, Smaller Size and High Efficiency Gas Systems
