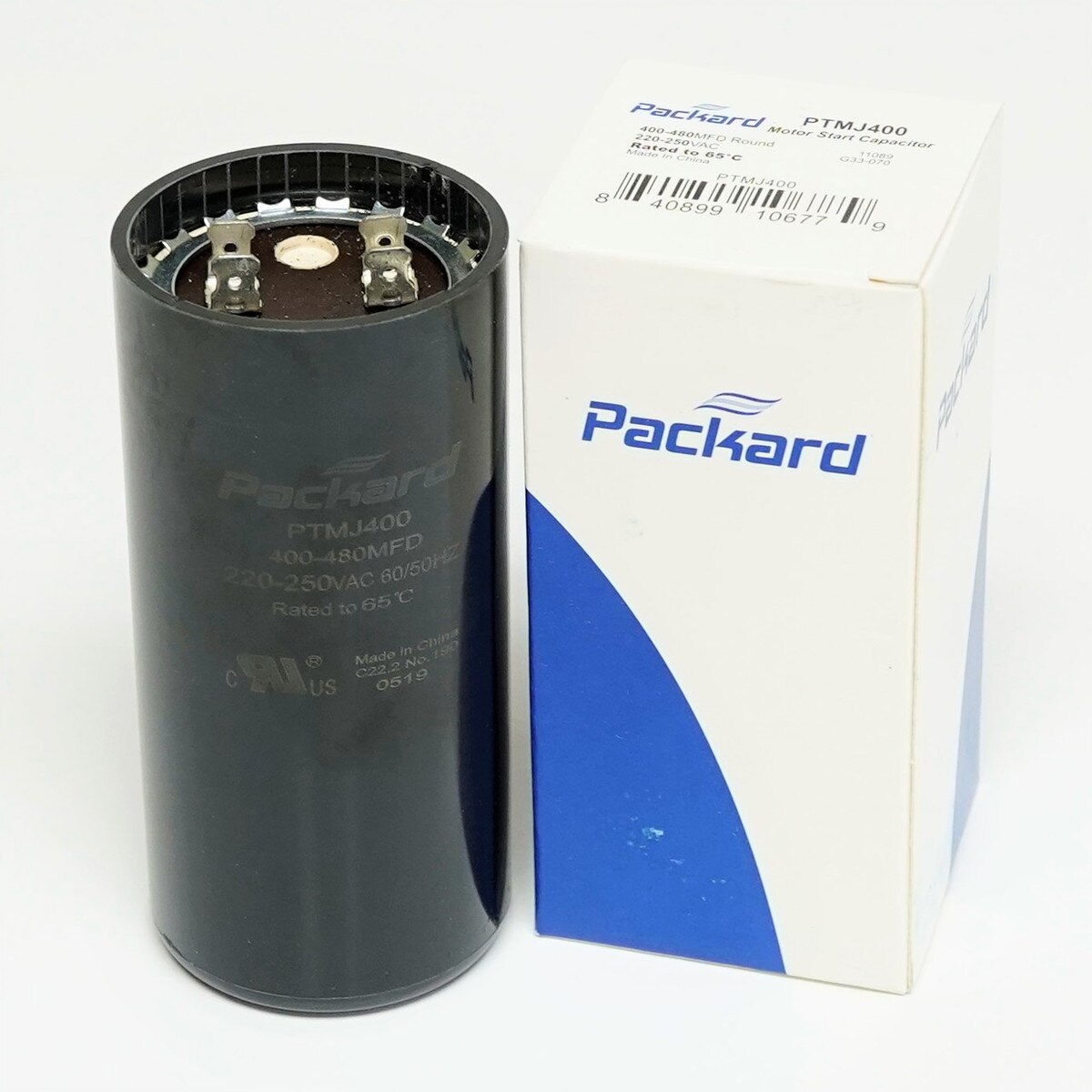

PACKARD INC 400-480MFD/220-250V TTMJ400
Product Specification
| Specification | Value |
|---|---|
| Part Number | TTMJ400 |
| Type | Motor Start Capacitor |
| Capacitance Range | 400-480 MFD |
| Voltage Rating | 110-125 VAC |
| Case Size | 7 |
| Application | HVAC Compressors and Motors |
| Duty | Intermittent (Start) |
Description
The TTMJ400 is a 400-480 MFD 110-125 VAC Case Size 7 motor start capacitor built for demanding HVAC startup duty. It stores and releases a concentrated burst of electrical energy at startup, allowing compressors and PSC motors to achieve proper run speed before the capacitor drops out of the circuit. A direct replacement for worn start capacitors, it resolves symptoms such as buzzing at startup, tripped breakers, or compressors that hum but fail to start.
