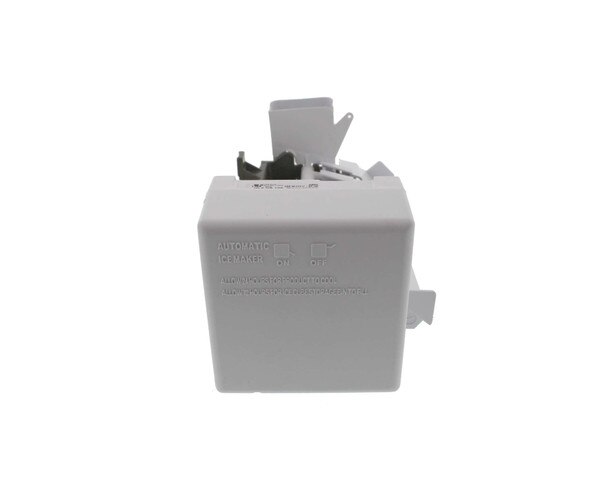

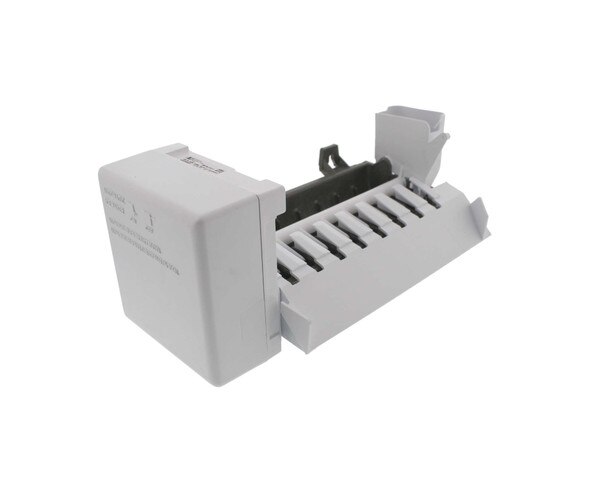

WHIRLPOOL CORP ICEMAKER 8 CUBE 2198597
Description

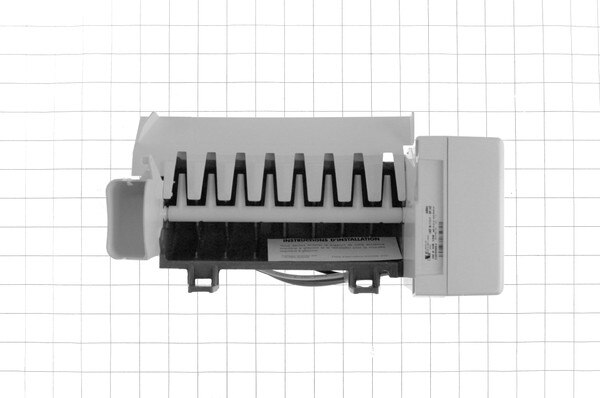

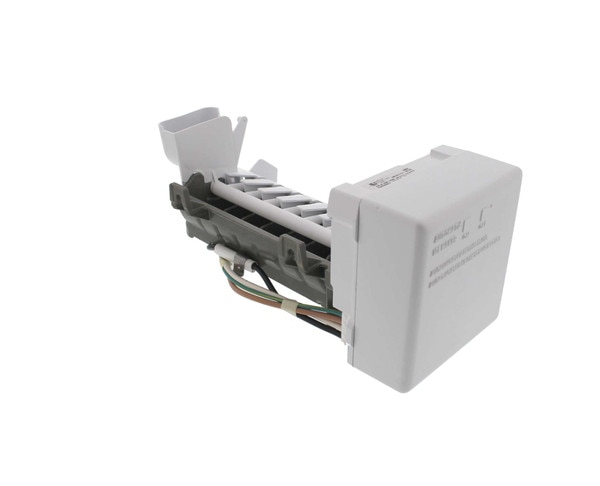

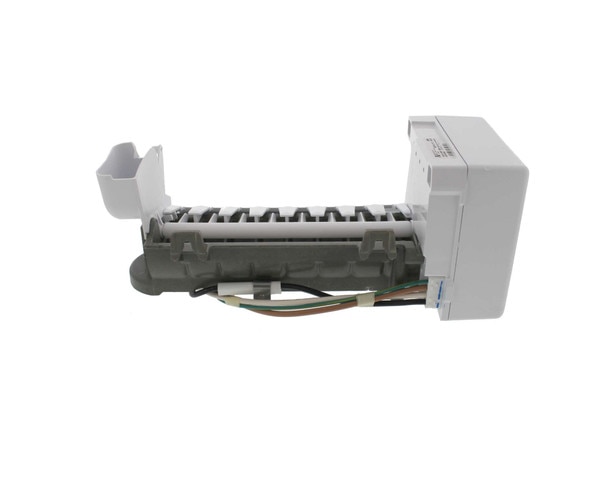

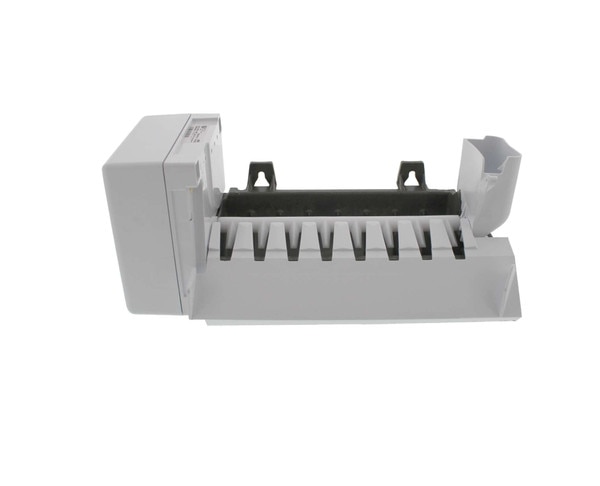

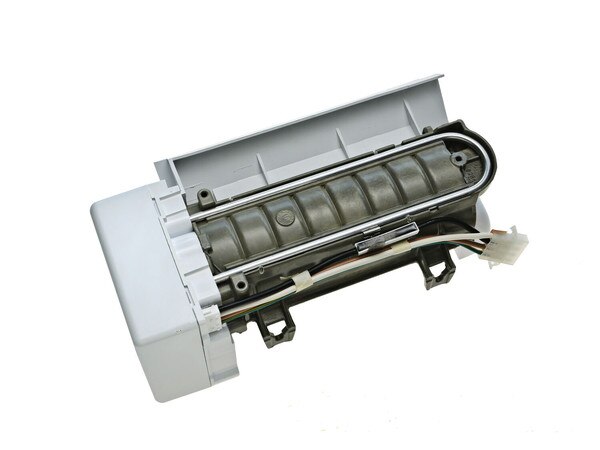

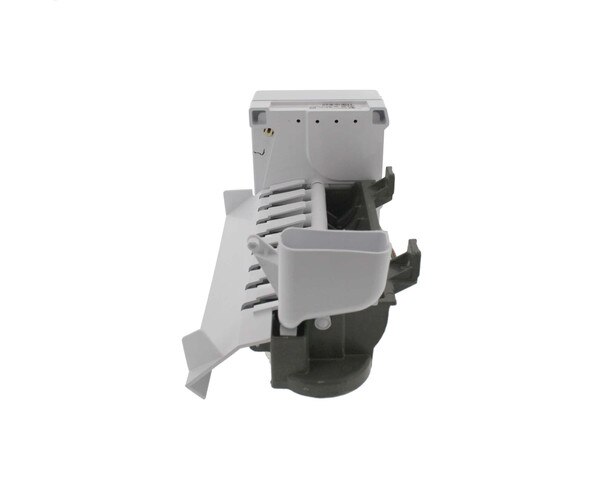

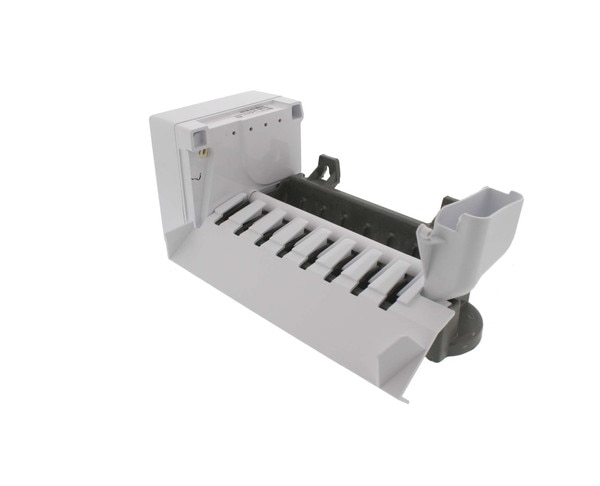

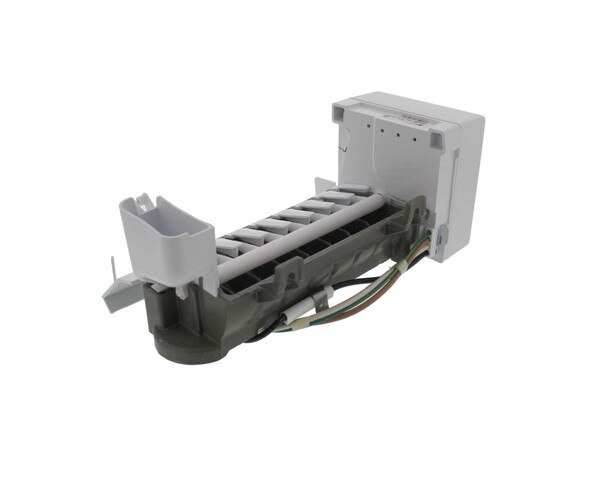

Whirlpool OEM 2198597 Refrigerator Ice Maker Assembly. This ice maker assembly includes the ice mold and control device. The ice maker receives water from the water inlet valve and then holds the water in the ice mold until the water freezes solid. It then automatically ejects the ice and refills to continue the process until the ice storage bucket is full
Schematic
Compatible Brands
Whirlpool, Kenmore, Maytag, Jenn Air, KitchenAid, Amana, Magic Chef, Montgomery Wards, Roper, Crosley, Admiral, Hoover, Estate, Norge, Inglis
