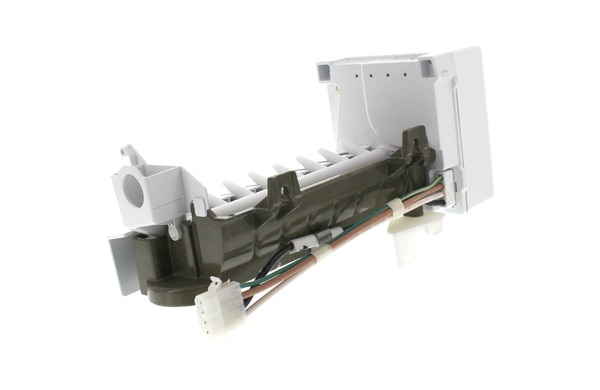

WHIRLPOOL CORP Refrigerator Ice Maker Assembly 4317943

(0) No Reviews yet
Part #: 4317943
Brand: WHIRLPOOL CORP
$119.99

Ships within 48hrs!

Description

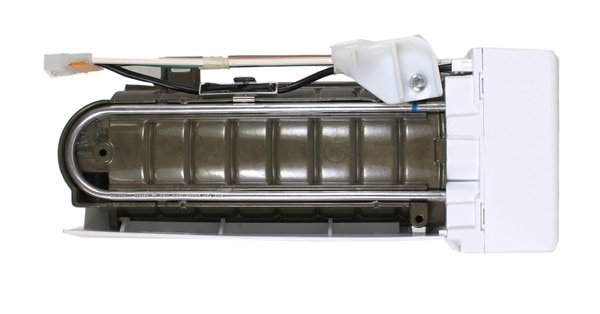

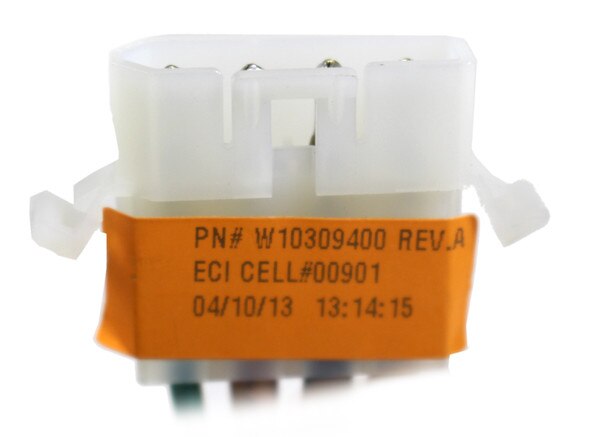

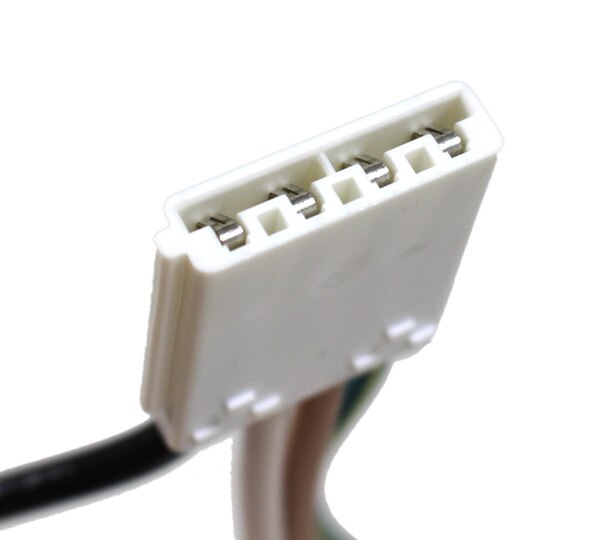

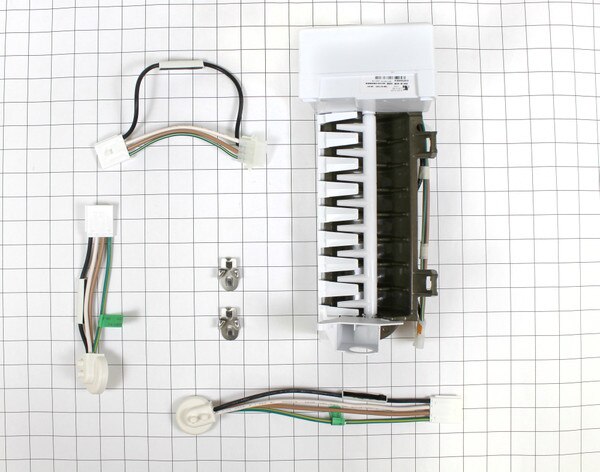

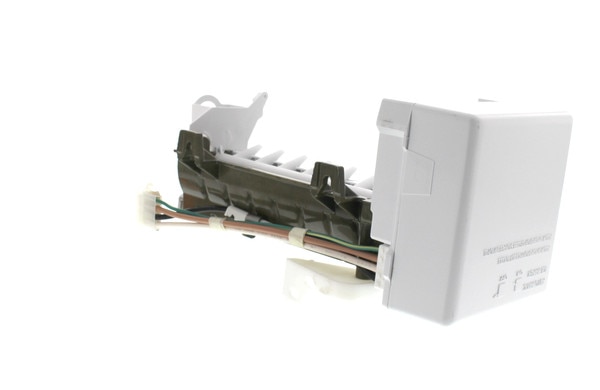

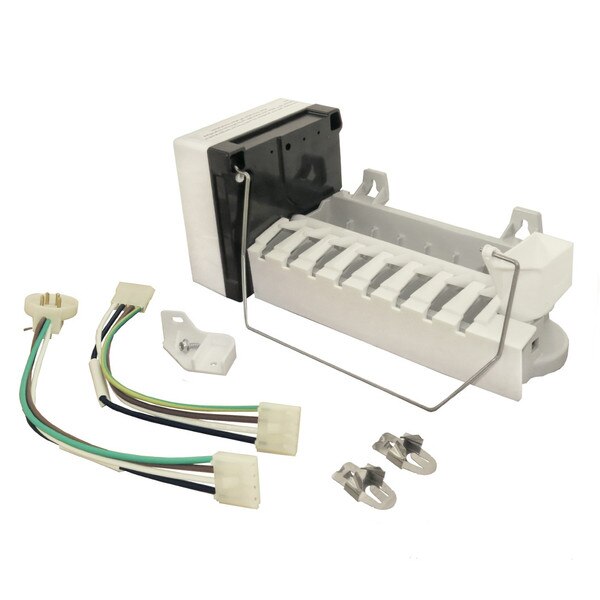

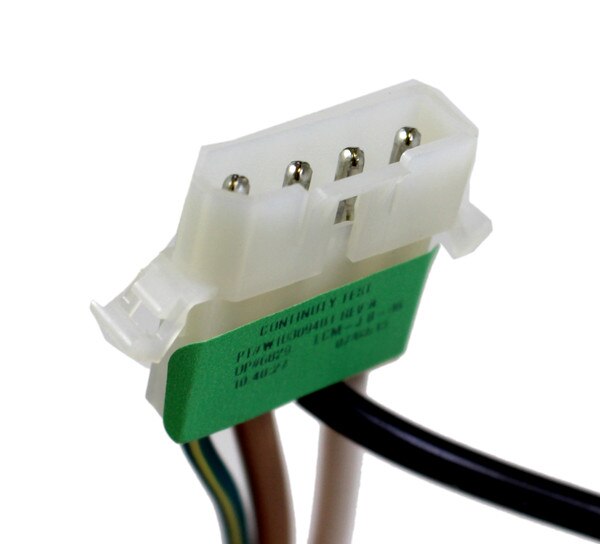

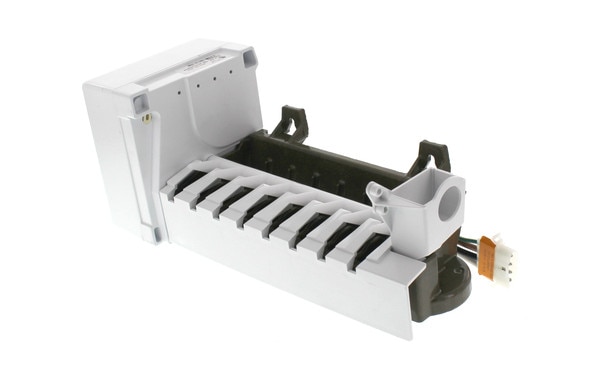

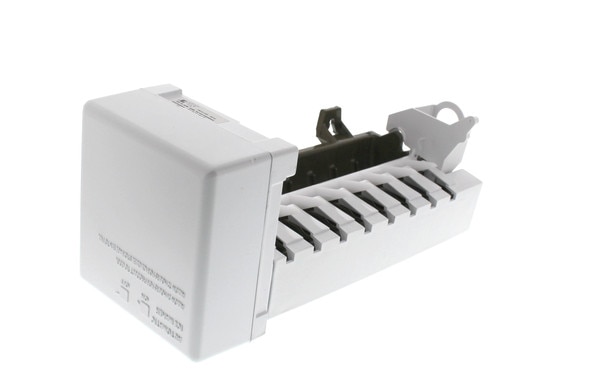

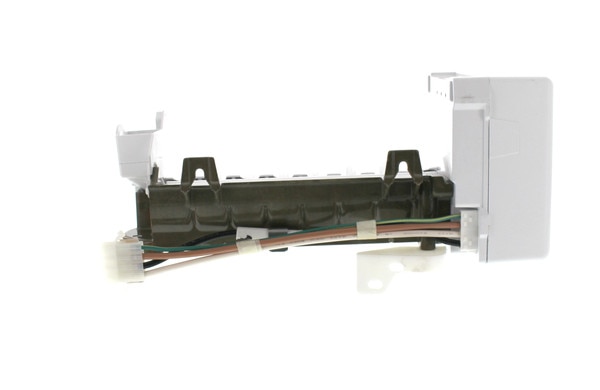

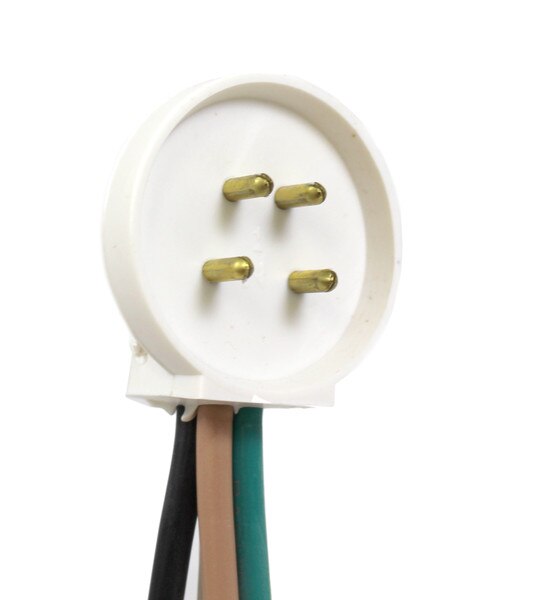

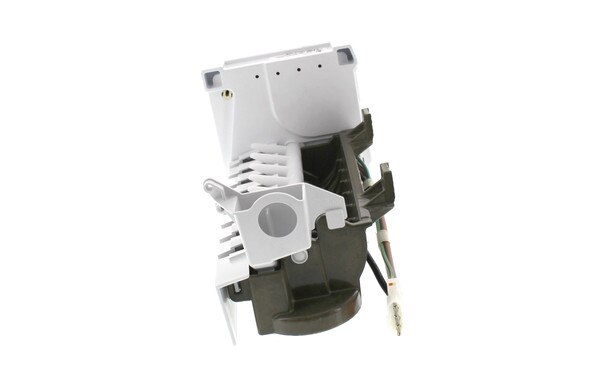

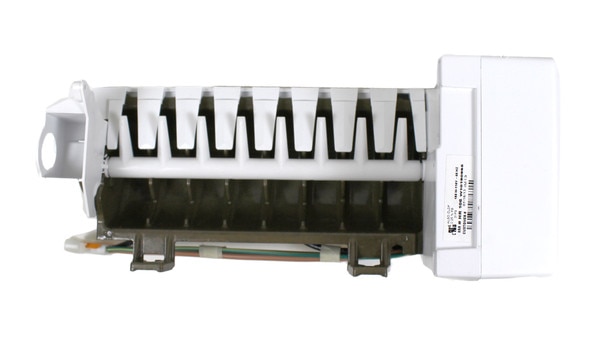

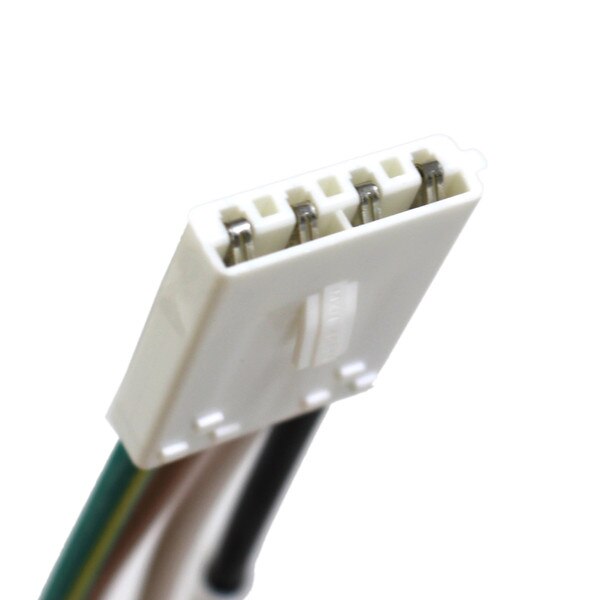

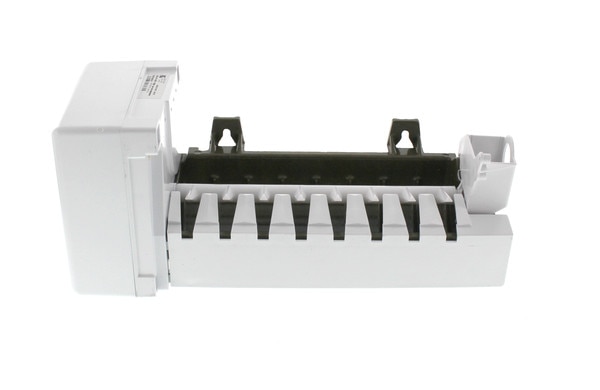

Whirlpool OEM 4317943 Refrigerator Ice Maker Assembly. This ice maker assembly includes the wiring harness, mounting hardware and instructions. It does not include the shut-off arm. The ice maker receives water from the water inlet valve and then holds the water in the ice mold until the water freezes solid. It then automatically ejects the ice and refills to continue the process until the ice storage bucket is full

Schematic

Compatible Brands

Whirlpool, Kenmore, Maytag, Jenn Air, KitchenAid, Amana, Magic Chef, Montgomery Wards, Roper, Crosley, Admiral, Hoover, Estate, Norge, Inglis
